TCS125 instruction

TCS-125

TCS125 20V Digital Torque Controlled Impact Driver

Product Features

  • Johnswell TCS125 Digital Torque Controlled Impact Driver – Designed for precise torque control in assembly and maintenance tasks
  • Smart Digital Torque Control – 14+1 preset torque levels deliver consistent and accurate fastening.
  • Auto-Stop – Stops instantly when the preset torque is reached—no over-tightening, no guesswork.
  • Max torque up to 120 Nm (89 ft-lbs) – Ideal for assembly lines, maintenance work, and light tire-related applications.
  • One-touch forward / reverse operation – Easy switching for fastening and removal.
  • 1/4” (6 mm) hex drive – Compatible with standard bits for versatile applications.

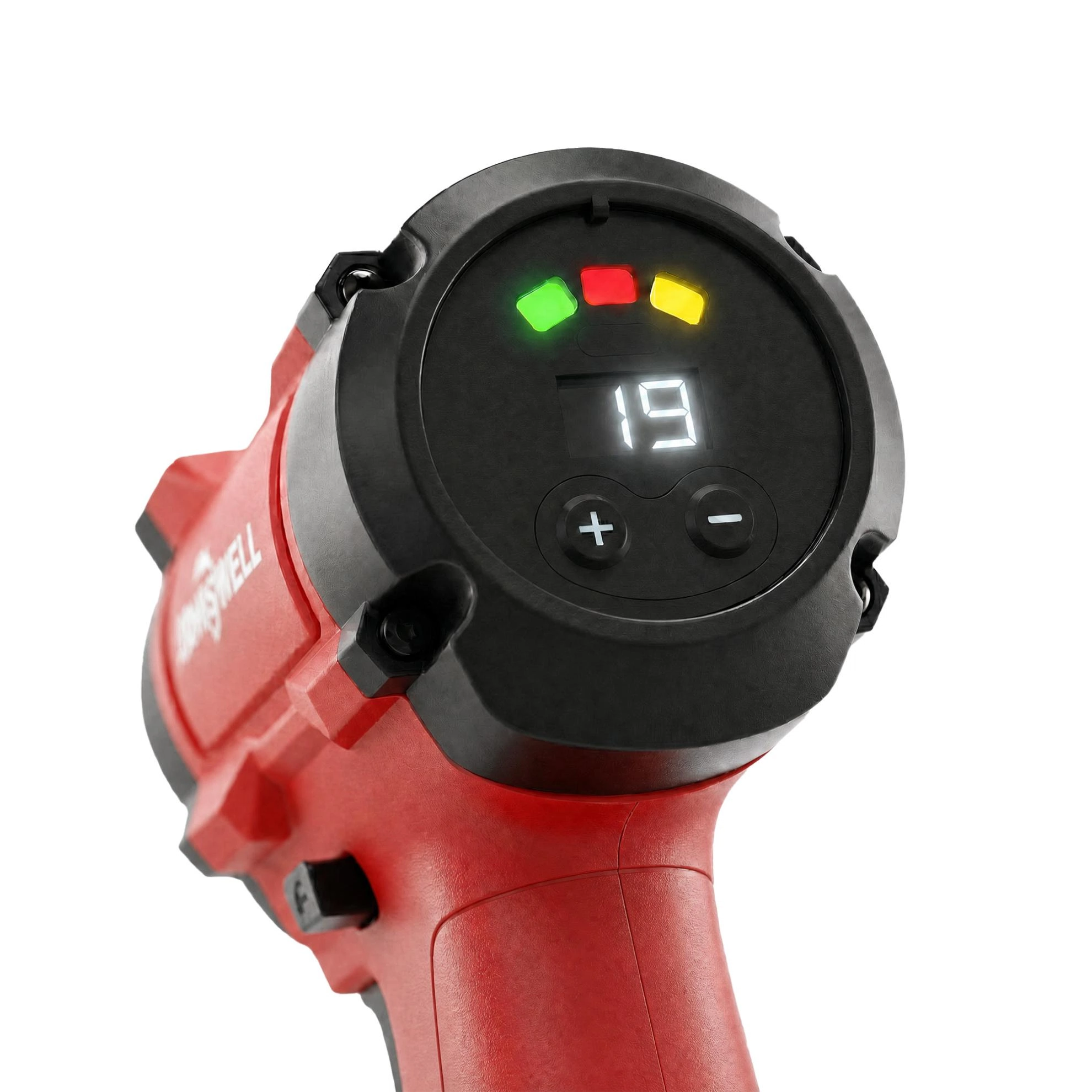

  • LED status indicators – Green: normal operation · Red: error alert · Yellow: low battery.s.
Product Specifications
Model No. TCS125
Rated Voltage DC 20V
Drive Size 1/4” (6 mm) Hex
Max Torque 120 Nm (89 ft-lbs)
Torque Levels 14+1 Levels
Weight 1.08 kg (without battery)
Size 150 × 61 × 210 mm
Torque Range 15 Nm – 120 Nm (11–89 ft-lbs)
